Reassembling a Singer 66 - The Bobbin Winder

It's time for the next installment of reassembling my Singer 66. I can't imagine anyone who is following my blog right now (most family) is going to read this in its entirety, but hopefully some poor soul scouring the internet for this kind of tutorial will find this helpful. Which reminds me... better post my disclaimer again...

**WARNING/DISCLAIMER - I am not a professional, and I don't really know what I'm doing! So if you're looking for instructions on how to clean a vintage sewing machine, maybe check out Peter's links here. If you're just amused at the antics of an amateur with a bunch of screw drivers and a Singer 66, read on.**

Alright, last time I showed you how I put all the bottom stuff back together. Today I'll tackle the bobbin winder and associated bits and pieces. In other words, this stuff:


Starting with this piece...


We need a spring to fit into the left hole there. There are three springs that go into this whole contraption:


For this part I want that smallest one on the right. It's the only one that fits - that's how I know. So fit it into that hole as shown below. You can see that the little bend in the spring fits into one of three small holes. I think I have it positioned here in the one at the bottom (or furthest left, however you want to view it).


Next take the part shown below (I'll call it an arm) with its associated screw and fit them over the spring.


You can see that the small hole in the arm fits over the other bend in the spring (arrow below).


And once in place, the spring allows you to move the arm back and forth...


Now we need this disc piece (below) and its screw. It's going to fit over the other hole, and that little notch at the top is going to line up with the notch on the black thingy (bobbin winder). The side facing up on the disc is going to face down on the bobbin winder.


Oops, forgot there's this little washer that goes between the disc and bobbin winder (below).


The concave side faces the disc:


Now we can put it on the bobbin winder, put the screw through...


And here's the opposite side below. The square nut fits over the end of the screw to hold everything in place:




Next, rotate the bobbin winder so you are looking at this side, and take the largest spring and this screw:


The short tail of the spring will go through the itty bitty hole in the photo below, and the screw pokes through from the other side:

screw is in place
spring is in place
Now the belt cover and this metal piece (below) will both fit over the spring and screw. This part is tricky and may require extra hands because you have to keep tension on the spring while turning the screw. Keep reading before you attempt this because I did this incorrectly at first and want to save you the trouble.


In the photo below you can see the tail of the spring poking out, but it is on the wrong side. It should be pushed over to the other side of the metal piece where the pink arrow is pointing.


Here it is put together incorrectly. You can just see the tail of the spring poking out.


And here it is put together correctly:

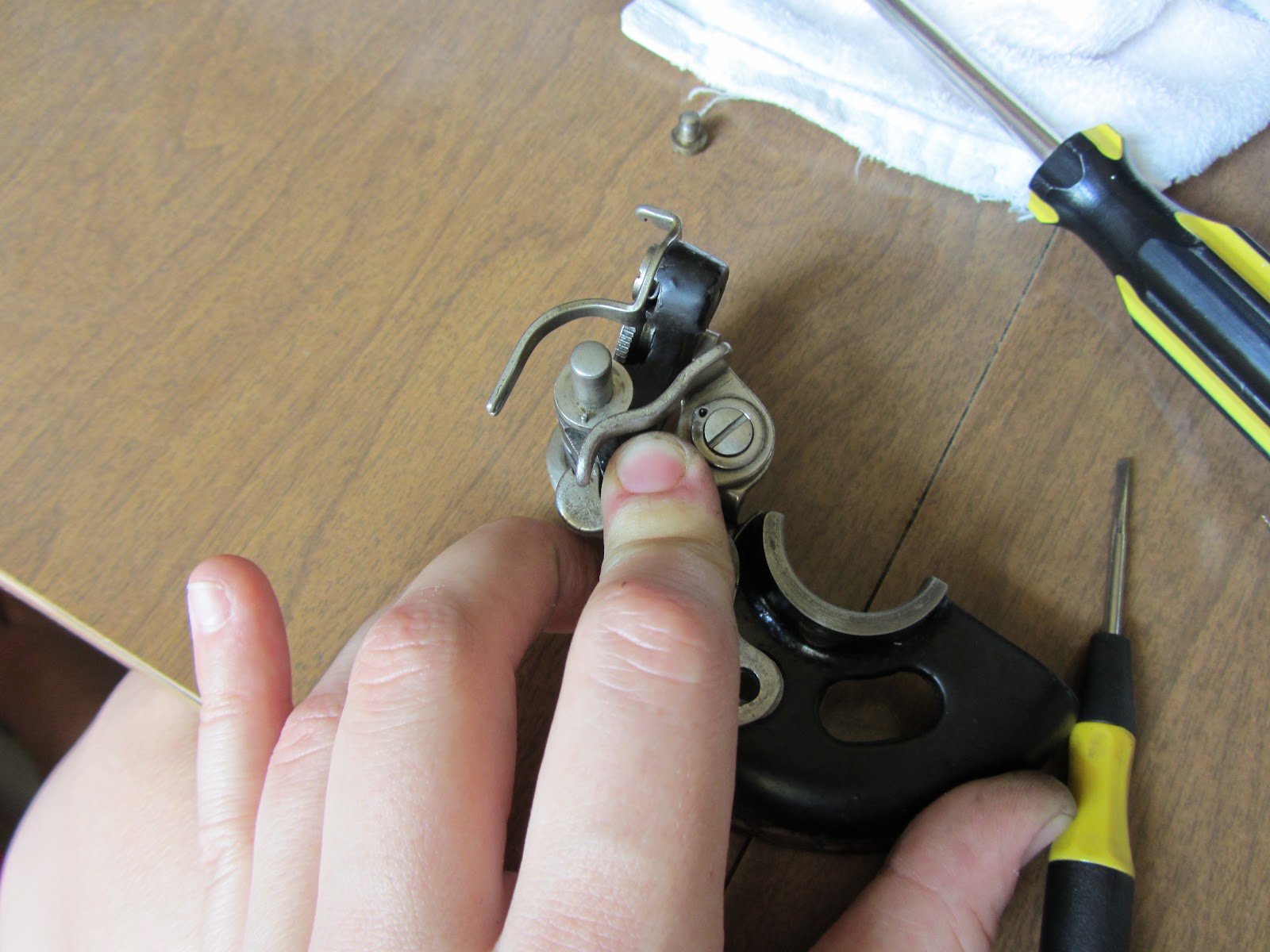

Keeping it over on the left like that requires holding tension on the screw, and it's hard to do this while holding all three pieces you're connecting AND turning the screw. I made Josh help. In these next few photos, the spring tail is in the wrong position so please ignore that. I went back and fixed it after I had put everything else together.

Okay, now we flip everything over and grab the last spring (medium sized one).


It fits into the circular grove as shown below, with one of the tails fitting into the tiny hole on the right. At the moment I have no idea whether or not I've been choosing the correct tiny holes and what difference it might make. So if you're following my lead you might want to wait til I publish the rest of these walk-thrus to find out if my machine actually sews correctly in the end.


Now the metal arm shown below will fit over the top of the spring and the screw below will hold it in place. Sound easy? I think this was the hardest part of putting my machine back together.


Again, the tiny hole in this piece fits over the other tail of the spring. It also needs to twist around, once again keeping tension on the spring.


You can see below that I did this incorrectly at first. I twisted the spring the wrong way, loosening it rather than tightening it, and it expanded too large for that circular groove. You can see where it popped out below (pink arrow).


Here's the view from the other side. Definitely not right.


Unfortunately, I found it much more difficult to bend the spring the correct way. In the end I took two pairs of pliers, grasped both tails of the spring, and twisted it into a tighter coil. This made things a little easier.

When this piece is in its proper place, the metal arm hooks around a little black bump on the bobbin winder, shown below where the arrow is pointing. Also, check out my awesome before and after comparison! Taking all those photos as I took everything apart has really helped for the reassembly process. If I can offer any advice, it's to take lots of pictures and at lots of different angles when you are doing a job like this.


Now we can mount the whole thing back on the sewing machine. Here's where it goes:


 The screw below attaches the bobbin winder to the machine.

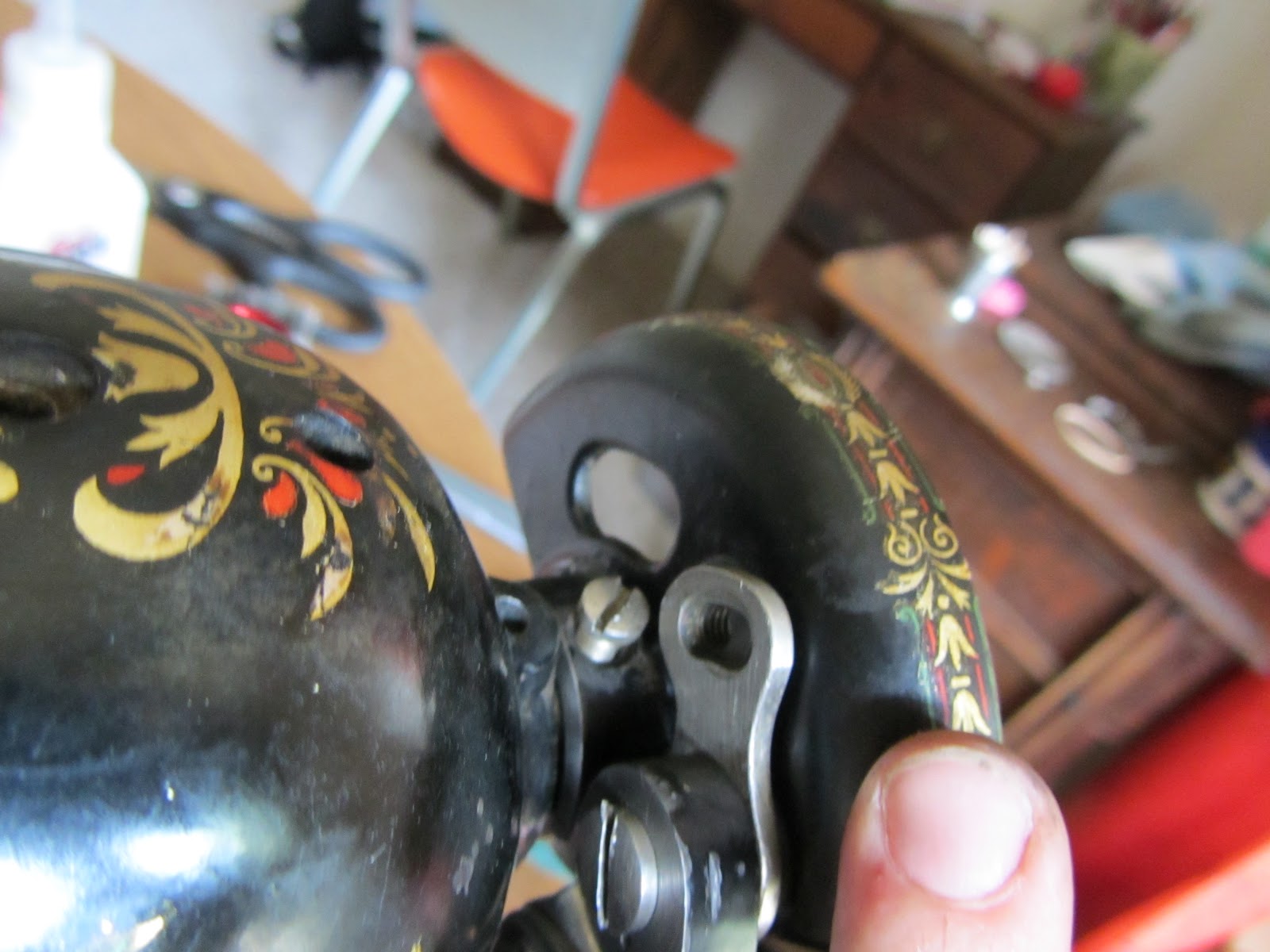

Then this small screw goes through the hole shown below.



Now for the wheel and stuff.


This screw:


Goes here:


Then the wheel slips on...

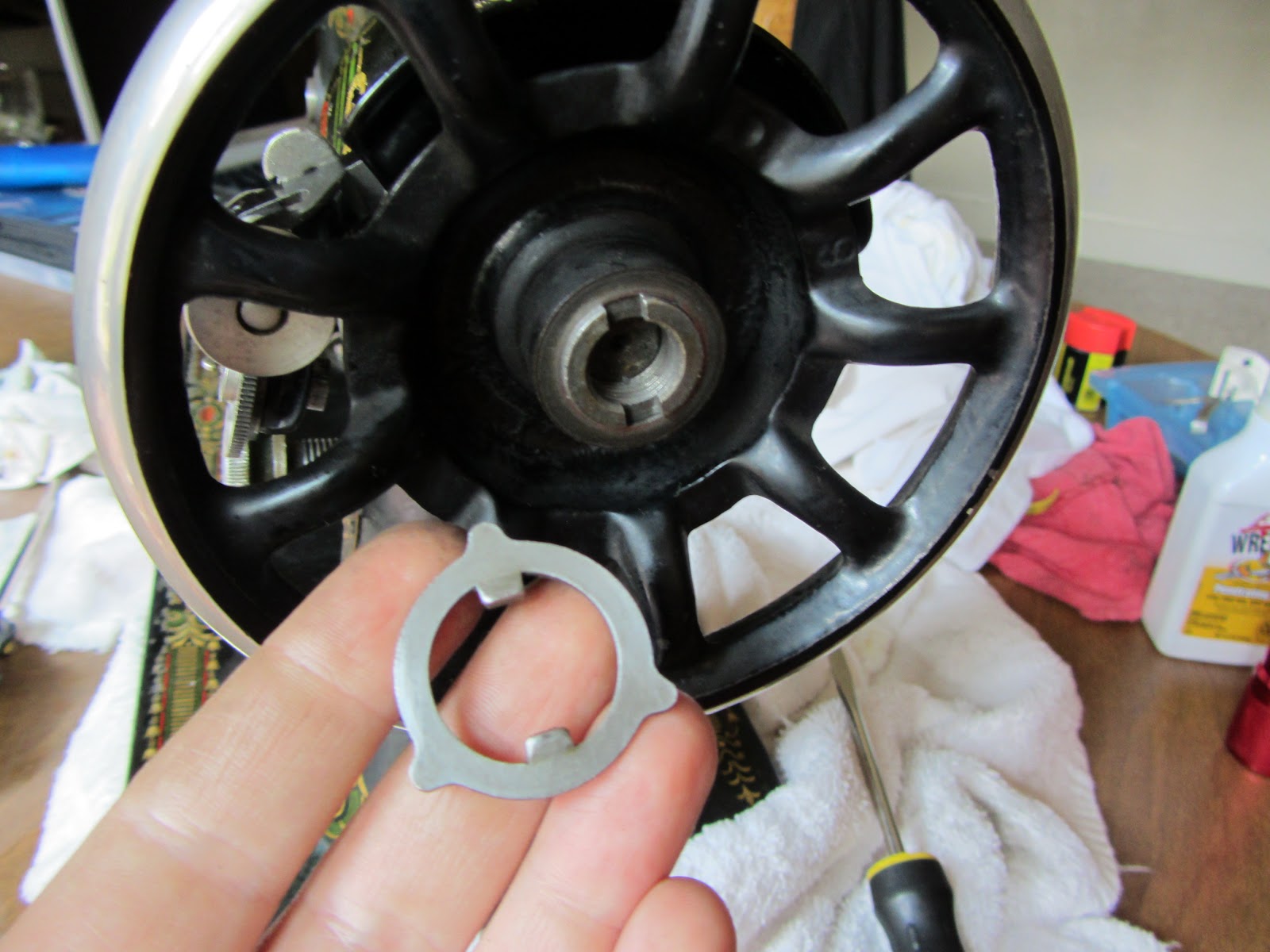

And then this doohickey...



And finally this screws over the end!


And that's it! Forgot to take a photo of it all together, but here's an old one from before I took it apart.


Next time, the tension assembly.
